Grimmspeed Top Mount Intercooler Kit Subaru WRX 2015-2021 (090070)

Grimmspeed Top Mount Intercooler Kit Subaru WRX 2015-2021 (090070)

Regular price $889.00 USD
Regular price Sale price $889.00 USD
Sale Sold out
Tax included.

090070

For your Subaru WRX 2015-2021

Replace that undersized, plastic stock intercooler with a GrimmSpeed Top Mount Intercooler Kit, featuring cast aluminum end tanks, large bar and plate core and TIG welded construction. The factory FA20dit TMIC is well-suited for stock applications, but when boost levels are increased, the higher post-turbo air temps contribute to pre-detonation (or 'knock') and loss in power. The GrimmSpeed intercooler is designed to keep charge temps consistent during aggressive driving so that the rest of your parts can work to make power.

Quick Specs

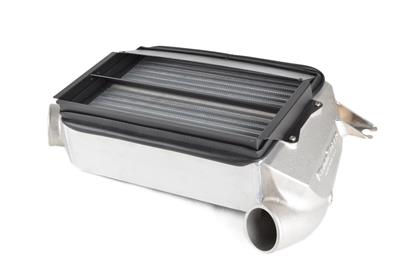

  • 13.1in x 10in x 3.75in Cross Flow Core - careful balance of high heat transfer and low pressure drop
  • Cast Aluminum End Tanks - featuring machined splitter mounting features

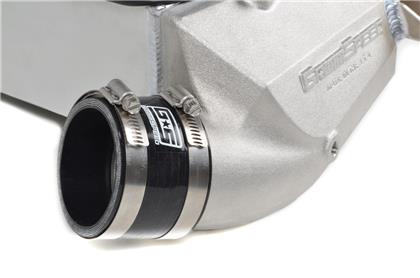

  • 5-Ply Silicone Couplers - custom molded and reinforced for demanding environments

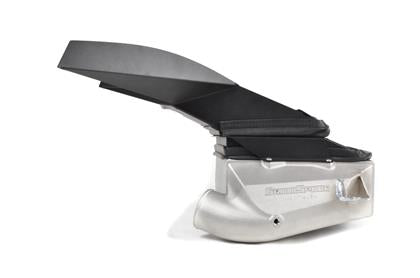

  • Fully-Integrated Two-Piece Splitter - collects air from the entire width of the scoop and feeds it directly to the core
  • Water 1/8 NPT Bung - Cast into the outlet end tank, CNC machine tapped and plugged for future use
  • Vibration Isolation Mounting - protect the intercooler system from fatigue due to vibration by reusing the factory mounts
  • Cleaned, Inspected and Sealed Prior to Shipping - prevent motor damage due to foreign matter
